TR75 Flat Wire Leaded Inductor with High Current Capability, Low DC Resistance, and Flat Wire Winding Structure for Power Applications

1000
MOQ
TR75 Flat Wire Leaded Inductor with High Current Capability, Low DC Resistance, and Flat Wire Winding Structure for Power Applications
ميزات صالة عرض منتوج وصف نتحدث الآن
ميزات
مواصفات
إبراز:

High Current Capability Flat Wire Inductor,Low DC Resistance Leaded Inductor,Flat Wire Winding Structure Dip Power Inductor

,

Low DC Resistance Leaded Inductor

,

Flat Wire Winding Structure Dip Power Inductor
معلومات اساسية
مكان المنشأ: الصين
اسم العلامة التجارية: SHINHOM
إصدار الشهادات: RoHS
رقم الموديل: Tr75
الوثيقة: TR75 Series_.pdf
شروط الدفع والشحن
وقت التسليم: 2 ~ 8 أسابيع
شروط الدفع: الاعتماد المستندي، تي/تي
منتوج وصف

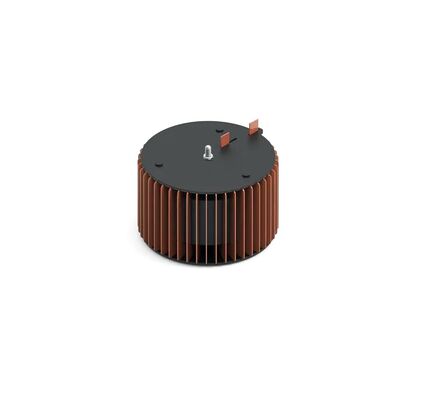

TR75 Flat Wire Leaded Inductor for High Current Power Applications
The TR75 Flat Wire Inductor Series is a high current leaded inductor engineered with flat wire winding technology to achieve low DC resistance, high current capability, and stable inductance performance. Designed for through-hole mounting, this Flat Wire Inductor series is optimized for power conversion circuits where efficiency, thermal performance, and reliability are critical.
Compared with conventional round-wire inductors, the TR75 series utilizes a flat copper conductor to increase the effective cross-sectional area, reducing copper loss and improving heat dissipation. This makes it an ideal Leaded Inductor solution for high-power and high-current electronic systems.
Key Features
  • Flat Wire Winding Structure - Improves current handling and reduces DC resistance compared to traditional wirewound designs.
  • High Current Capability - Designed for applications requiring stable performance under continuous high current conditions.
  • Leaded / Through-Hole Mounting - Ensures mechanical strength and reliability in industrial and power electronics assemblies.
  • Low DC Resistance (Low DCR) - Enhances power efficiency and minimizes conduction loss in power circuits.
  • Robust Construction - Suitable for demanding environments in power converters and industrial electronics.
  • Series-Based Customization - Inductance, current rating, and electrical characteristics are available per TR75 series datasheet.
Electrical Characteristics
Inductance Range Refer to TR75 Series specifications
Rated Current High current design (series-dependent)
DC Resistance (DCR) Low DCR structure with flat wire winding
Tolerance Series-dependent
Operating Temperature Refer to datasheet
Mounting Type Through-hole / Leaded
Applications
  • Power Converters - DC-DC and AC-DC power converter circuits requiring high current inductors.
  • Industrial Power Supplies - Stable current handling in harsh operating conditions.
  • Automotive Electronics - Power management modules with high efficiency requirements.
  • Energy Storage & Regulation - Used alongside transformers and power converter modules.
  • High Power Circuits - Ideal replacement for conventional wirewound inductors with improved thermal performance.
Related Categories
To support complete power and EMI solutions, the TR75 series is often used together with:
  • Flat Wire Inductor solutions for low-loss power designs
  • Leaded Inductor products for through-hole power assemblies
  • Power Converter components in high-efficiency energy systems
Why Choose TR75 Flat Wire Inductor?
The TR75 Flat Wire Inductor combines high current capability with a leaded, flat wire structure to deliver reliable performance in modern power electronics. Its low DCR design helps engineers improve system efficiency while maintaining mechanical robustness for long-term operation. For detailed electrical parameters and model selection, please consult the TR75 Series datasheet or contact our technical team for support.
