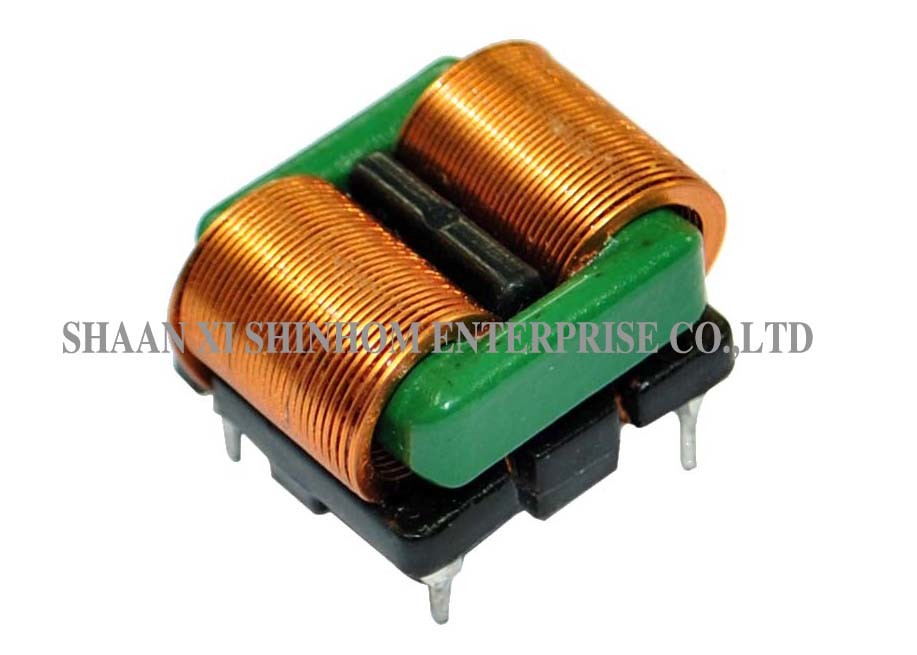

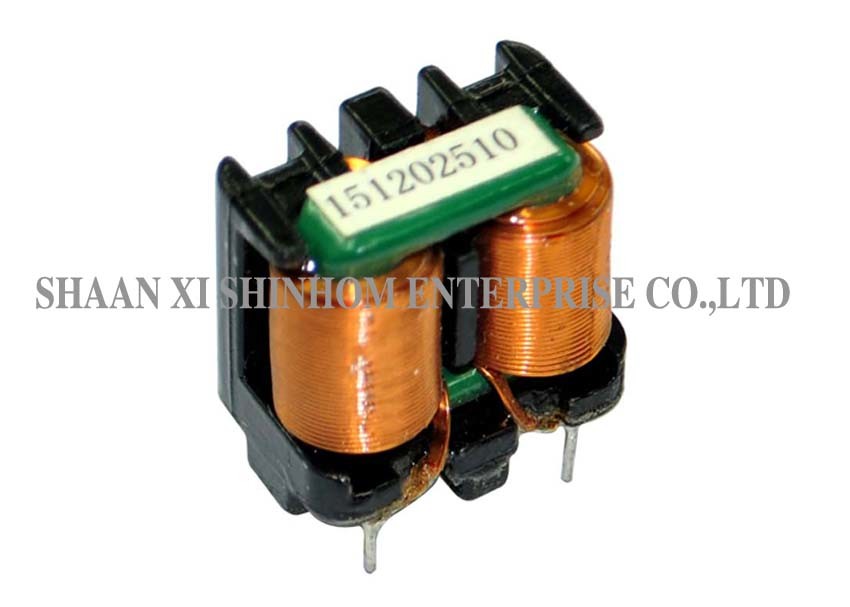

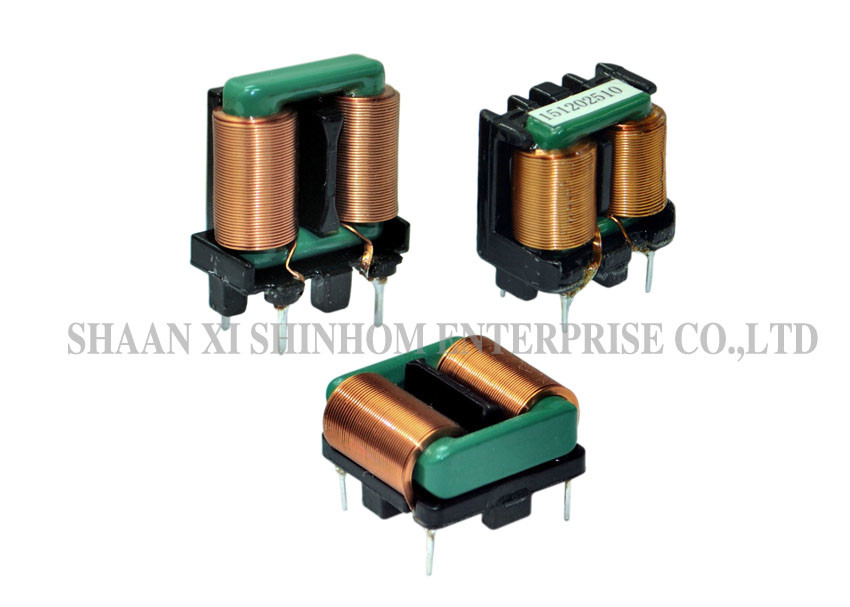

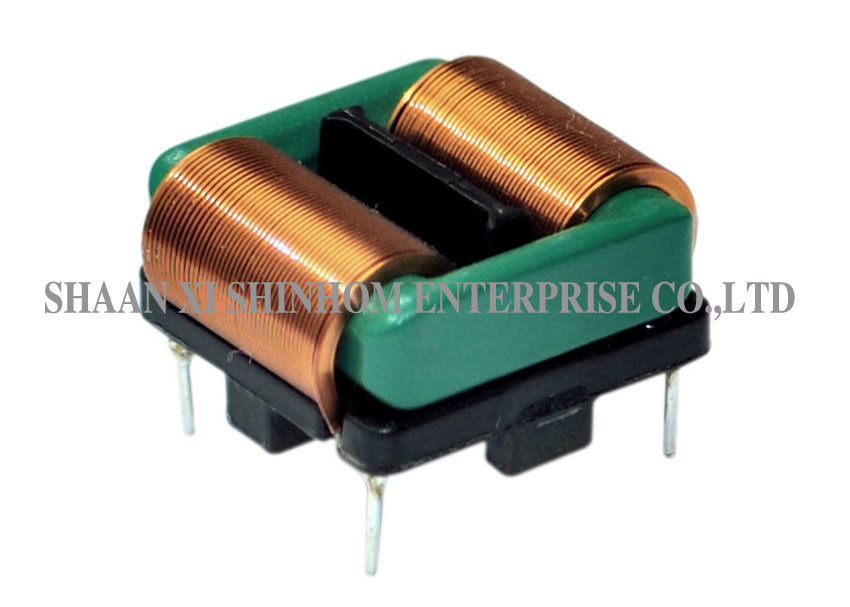

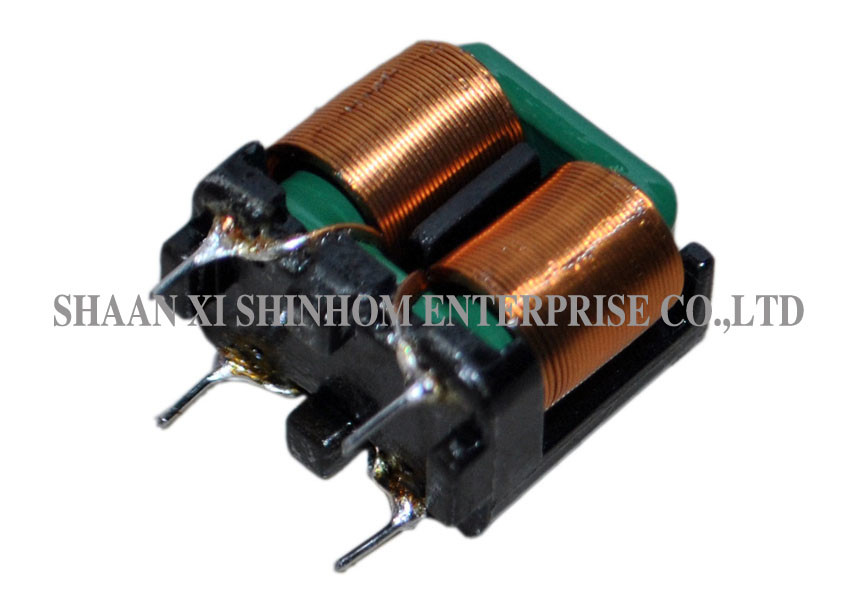

عالية التردد الأسلاك المسطحة عالية الوضع المشترك الحالي الإختناقات لفائف ويمكن تخصيص الحث
ميزات:
الوضعية:
| تخصيص | الحث MIN 1 كيلو هرتز 0.25 فولت | الأبعاد (مم MAX) | الحالي (A) | الطاقة (W) | ||||||||
| W | د | H | L | E | أفقي | عمودي | MAX | MAX | ||||
| P1 | P2 | P1 | P2 | |||||||||
| SQ1515 | > 15mH | 16 | 22 | 22 | 3.5 | 0.8 | 12.8 | 10 | 8 | 7 | 1.5 | 60 |
| SQ1515 | > 20MH | 16 | 22 | 22 | 3.5 | 0.8 | 12.8 | 10 | 8 | 7 | 1.2 | 60 |
| SQ1515 | > 25mH | 16 | 22 | 22 | 3.5 | 0.8 | 12.8 | 10 | 8 | 7 | 1.2 | 60 |
| SQ1515 | > 15mH | 18 | 22 | 14 | 3.5 | 0.8 | 16.8 | 12.8 | - | - | 1.5 | 60 |
| SQ1515 | > 20MH | 18 | 22 | 14 | 3.5 | 0.8 | 16.8 | 12.8 | - | - | 1.2 | 60 |
| SQ1515 | > 25mH | 18 | 22 | 14 | 3.5 | 0.8 | 16.8 | 12.8 | - | - | 1.2 | 60 |
| SQ1615 | > 15mH | 16 | 22 | 23 | 3.5 | 0.8 | 12.8 | 10 | 8 | 7 | 1.5 | 65 |
| SQ1615 | > 20MH | 16 | 22 | 23 | 3.5 | 0.8 | 12.8 | 10 | 8 | 7 | 1.2 | 65 |
| SQ1615 | > 25mH | 16 | 22 | 23 | 3.5 | 0.8 | 12.8 | 10 | 8 | 7 | 1.2 | 65 |
| SQ1615 | > 15mH | 18 | 22 | 14 | 3.5 | 0.8 | 16.8 | 12.8 | - | - | 1.5 | 65 |
| SQ1615 | > 20MH | 18 | 22 | 14 | 3.5 | 0.8 | 16.8 | 12.8 | - | - | 1.2 | 65 |
| SQ1615 | > 25mH | 18 | 22 | 14 | 3.5 | 0.8 | 16.8 | 12.8 | - | - | 1.2 | 65 |
| SQ1918 | > 12mH | 15 | 25 | 26 | 4 | 0.8 | 12.8 | 10 | 10 | 10 | 2.0 | 180 |
| SQ1918 | > 20MH | 15 | 25 | 26 | 4 | 0.8 | 12.8 | 10 | 10 | 10 | 1.5 | 180 |
| SQ1918 | > 30mH | 15 | 25 | 26 | 4 | 0.8 | 12.8 | 10 | 10 | 10 | 1.2 | 180 |
| SQ1918 | > 12mH | 22 | 24 | 13 | 4 | 0.8 | 16.8 | 15 | - | - | 2.0 | 180 |
| SQ1918 | > 20MH | 22 | 24 | 13 | 4 | 0.8 | 16.8 | 15 | - | - | 1.5 | 180 |
| SQ1918 | > 30mH | 22 | 24 | 13 | 4 | 0.8 | 16.8 | 15 | - | - | 1.2 | 180 |
| SQ2418 | > 12mH | 15 | 24 | 32 | 4 | 0.8 | 12.5 | 10 | - | - | 2.5 | 250 |
| SQ2418 | > 20MH | 15 | 24 | 32 | 4 | 0.8 | 12.5 | 10 | - | - | 1.8 | 250 |
| SQ2418 | > 30mH | 15 | 24 | 32 | 4 | 0.8 | 12.5 | 10 | - | - | 1.5 | 250 |
| SQ2418 | > 12mH | 22 | 26 | 15 | 4 | 0.8 | 16.8 | 15 | - | - | 2.5 | 250 |
| SQ2418 | > 20MH | 22 | 26 | 15 | 4 | 0.8 | 16.8 | 15 | - | - | 1.8 | 250 |
| SQ2418 | > 30mH | 22 | 26 | 15 | 4 | 0.8 | 16.8 | 15 | - | - | 1.5 | 250 |
| SQ2724 | > 7mH | 18 | 30 | 38 | 4 | 0.8 | 4 دبابيس | - | - | 3.5 | 280 | |
| SQ2724 | > 15mH | 18 | 30 | 38 | 4 | 0.8 | 4 دبابيس | - | - | 2.5 | 280 | |
| SQ2724 | > 20MH | 18 | 30 | 38 | 4 | 0.8 | 4 دبابيس | - | - | 1.8 | 280 | |
| SQ2724 | > 7mH | 25 | 31 | 18 | 4 | 0.8 | 16.8 | 16.8 | - | - | 3.5 | 280 |
| SQ2724 | > 15mH | 25 | 31 | 18 | 4 | 0.8 | 16.8 | 16.8 | - | - | 2.5 | 280 |
| SQ2724 | > 20MH | 25 | 31 | 18 | 4 | 0.8 | 16.8 | 16.8 | - | - | 1.8 | 280 |
| SQ2820 | > 7mH | 16 | 30 | 38 | 4 | 0.8 | 4 دبابيس | - | - | 2.0 | 300 | |
| SQ2820 | > 20MH | 16 | 30 | 38 | 4 | 0.8 | 4 دبابيس | - | - | 2.5 | 300 | |
| SQ2820 | > 30mH | 16 | 30 | 38 | 4 | 0.8 | 4 دبابيس | - | - | 5.0 | 300 | |
| SQ2820 | > 7mH | 28 | 35 | 18 | 4 | 0.8 | 16.8 | 16.8 | - | - | 2.0 | 300 |
| SQ2820 | > 20MH | 28 | 35 | 18 | 4 | 0.8 | 16.8 | 16.8 | - | - | 2.5 | 300 |
| SQ2820 | > 30mH | 28 | 35 | 18 | 4 | 0.8 | 16.8 | 16.8 | - | - | 5.0 | 300 |
| SQ3126 | > 8mH | 22 | 34 | 38 | 4 | 0.9 | 18 | 16 | - | - | ثمانية | 400 |
| SQ3126 | > 8mH | 22 | 34 | 38 | 4 | 0.9 | 18 | 16 | - | - | 5.0 | 400 |
| SQ3126 | > 10mH | 22 | 34 | 38 | 4 | 0.9 | 18 | 16 | - | - | 3.5 | 400 |
| SQ3126 | > 25mH | 22 | 34 | 38 | 4 | 0.9 | 18 | 16 | - | - | 3 | 400 |
| SQ3126 | > 8mH | 28 | 35 | 18 | 4 | 1.0 | 20 | 16.8 | - | - | ثمانية | 400 |
| SQ3126 | > 8mH | 28 | 35 | 18 | 4 | 1.0 | 20 | 16.8 | - | - | 5.0 | 400 |
| SQ3126 | > 10mH | 28 | 35 | 18 | 4 | 1.0 | 20 | 16.8 | - | - | 3.5 | 400 |
| SQ3126 | > 25mH | 28 | 35 | 18 | 4 | 1.0 | 20 | 16.8 | - | - | 3 | 400 |
| SQ4391 | > 12mH | - | - | - | - | - | - | - | - | - | 7 | 600 |
| SQ4391 | > 12mH | 28 | 45 | 16 | 4 | 1.0 | 39 | 21 | - | - | 7 | 600 |
ملاحظات: مخصص متاح
