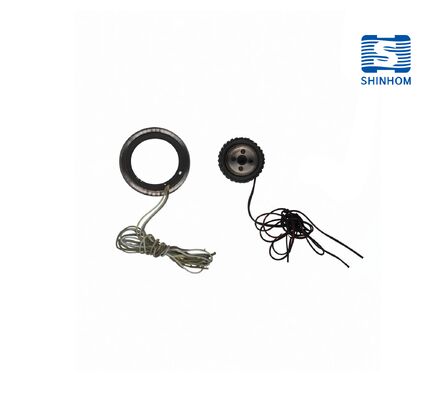

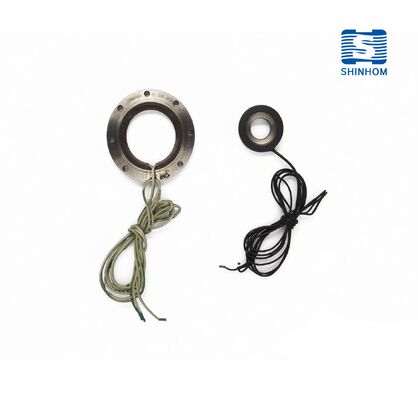

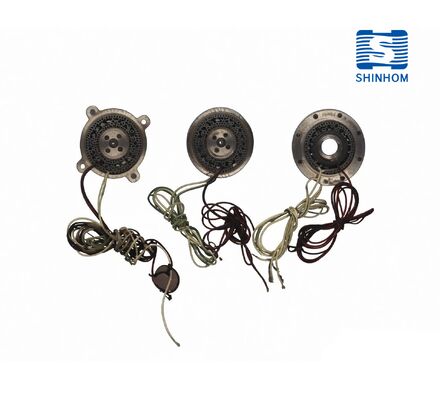

Engineered for high-precision signal conversion and measurement applications, this single channel rotary transformer delivers exceptional performance in industrial control, telecommunication, and sensor systems. Designed to ensure stable and reliable operation in challenging environments, it provides accurate and distortion-free signal transmission across a wide frequency range.
Built with high reliability and precision, this transformer minimizes wear and tear for extended service life under continuous operation. Optimized for consistent performance under varying environmental conditions including temperature fluctuations and electrical load changes.
| Motor Model | Pole Pairs | Excitation Frequency (Hz) | Excitation Voltage (V) | Output Voltage (V) | Power Consumption (W) | Zero Voltage (mV) | Electrical Error (') | Phase Shift (°) | Weight (g) | Temperature (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| J26XF001 | 1 | 2000 | 2/4 | 2 | ≤0.15 | ≤20 | ≤±5 | ≤±25 | ≤30 | -55~+85 |
| J30XF001 | 1 | 2000 | 2/4 | 2 | ≤0.15 | ≤20 | ≤±5 | ≤±25 | ≤36 | -55~+85 |
| J32XF001 | 1 | 2000 | 2/4 | 2 | ≤0.15 | ≤20 | ≤±5 | ≤±25 | ≤38 | -55~+85 |
| J36XF001 | 1 | 2000 | 2/4 | 2 | ≤0.15 | ≤20 | ≤±3 | ≤±25 | ≤40 | -55~+85 |
| J40XF001 | 1 | 2000 | 2/4 | 2 | ≤0.2 | ≤25 | ≤±3 | ≤±25 | ≤55 | -55~+85 |
| J45XF001 | 1 | 2000 | 2/4 | 2 | ≤0.2 | ≤25 | ≤±3 | ≤±25 | ≤65 | -55~+85 |
| J50XF001 | 1 | 2000 | 2/4 | 2 | ≤0.2 | ≤25 | ≤±3 | ≤±25 | ≤72 | -55~+85 |
| J52XF001 | 1 | 2000 | 2/4 | 2 | ≤0.2 | ≤25 | ≤±3 | ≤±25 | ≤75 | -55~+85 |
