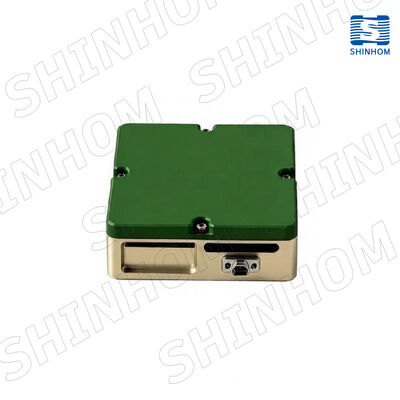

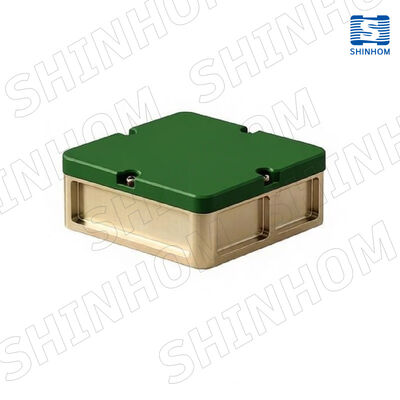

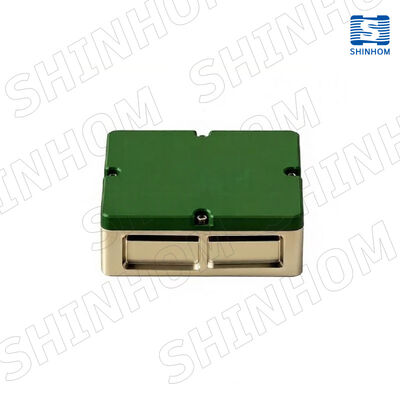

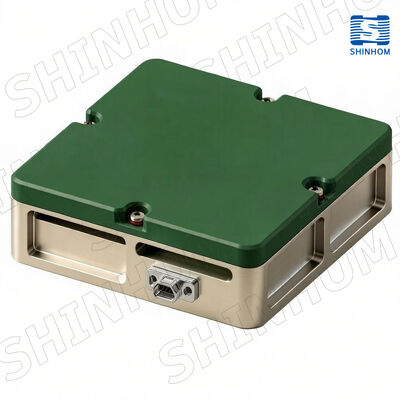

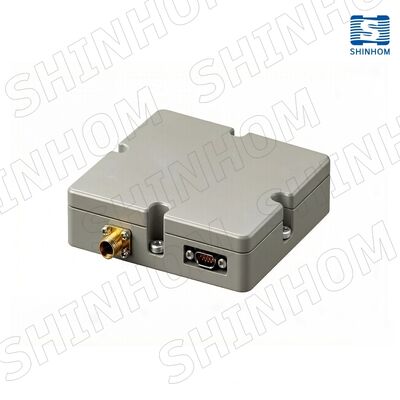

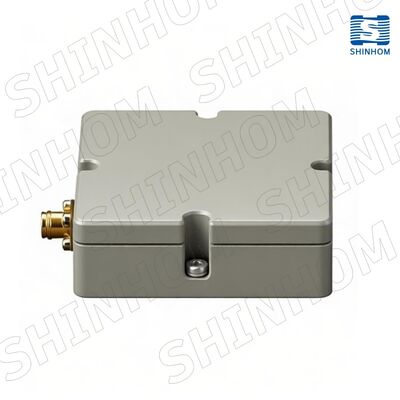

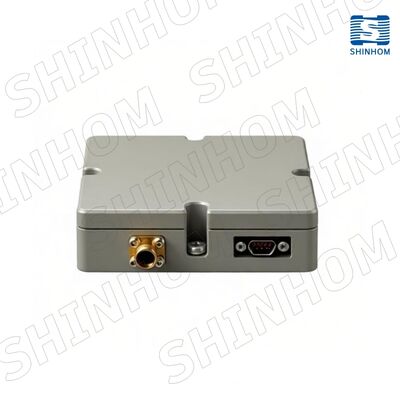

HFD2101-2 Integrated GNSS Anti-Jamming Receiver
The HFD2101-2 Integrated Anti-Jamming Receiver provides stable satellite navigation in challenging electromagnetic environments. Supporting GPS-L1 and BDS-B1 signals, it effectively suppresses broadband, narrowband, pulse, and frequency-sweeping interference. With compact design, low power consumption, and high reliability, it's ideal for UAVs, autonomous ground vehicles, unmanned surface vessels, and other platforms requiring accurate GNSS positioning under interference conditions.
Key Features
  • Advanced GNSS anti-jamming capability for reliable navigation
  • Dual-system support: GPS-L1 + BDS-B1 for improved accuracy
  • Low power consumption (≤10 W)
  • Compact and lightweight (<500 g) for easy integration
  • High reliability in harsh environments (-40°C ~ +75°C)
  • Standard communication interface for seamless integration
Applications
  • UAV navigation systems
  • Autonomous ground vehicles
  • Unmanned surface vessels
  • Military and electronic countermeasure environments
  • Intelligent transportation systems
  • Robotics and autonomous platforms
Technical Specifications
Receiving Frequency GPS-L1, BDS-B1I/B1C
Positioning Accuracy Horizontal 5 m (1σ), Vertical 10 m (1σ)
Speed Accuracy 0.2 m/s (1σ)
Position Update Rate 10 Hz
Anti-Jamming Capability Single ≥100 dB, Triple ≥90 dB
Input Voltage 9 – 36 V DC
Power Consumption ≤ 10 W
Weight ≤ 500 g
Operating Temperature -40°C ~ +75°C
Storage Temperature -55°C ~ +85°C
Why Choose HFD2101-2
Strong GNSS anti-interference capability, dual satellite system support (GPS + BDS), compact and lightweight integrated design, reliable performance in harsh conditions, and ideal for UAV and autonomous navigation applications.
