FS Large size soft magnetism flat ferrites bead,High frequency EMI Suppression Soft Ferrite Core beads
The FS large-size soft ferrite flat bead is manufactured using high-quality soft ferrite material, specifically designed for computer disk drives and PC board EMI filtering, ensuring high-frequency suppression and stable impedance. The product features a robust and reliable structure. Both through-hole axial and serrated structure options are available. It meets FCC and EMC measurement requirements. It is suitable for computer disk drives, PC boards, and car radios. It is an ideal choice for large-size ferrite bead applications in EMI suppression and noise filtering.
Features
High-frequency EMI suppression

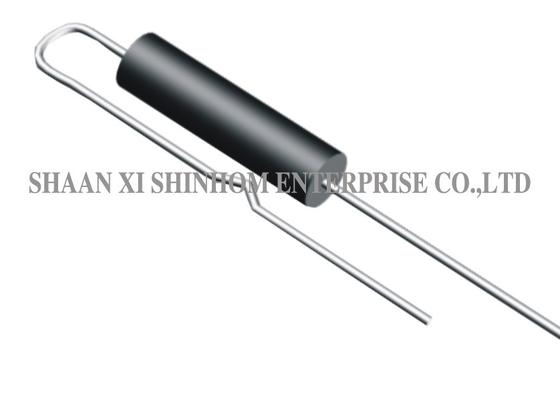

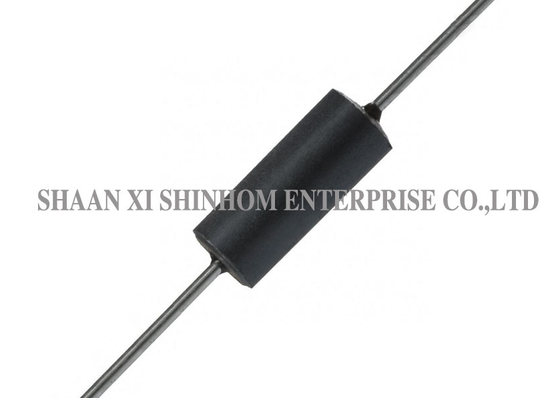

Through-hole axial EMI suppression
Serrated structure design

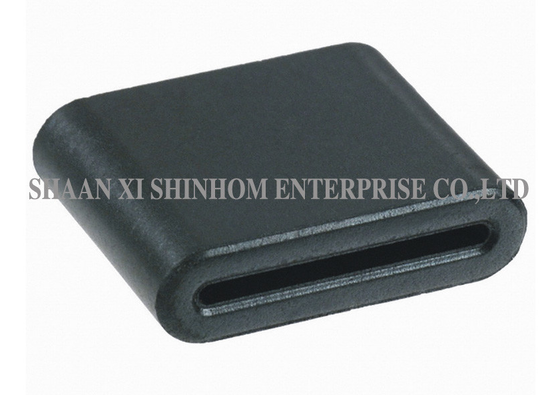

Large-size flat bead
For FCC and EMC measurement
Impedance at 25MHz – 25Ω
Impedance at 100MHz – 73Ω
For car radios
Applications
Computer disk drives
PC board EMI filtering
Car radios
Mobile phones
VCRs
FCC and EMC measurement
Noise filtering equipment
Electronic devices
Electrical characteristics:
|
SIZE CODE (mm)
|
A2 FS 19*6.5*13.5*12-1.8
|
|
at 25 MHz
|
25Ω MIN
|
|
at 100 MHz
|
73Ω MIN
|
|
TEST INSTRUMENTS
|
HP 4191A
|
|
LCR METER
|
HP 4286
|
|
WIRE
|
0.65T.C.W*100m/m 1/2Ts
|
|
TEMPERATURE
|
15℃ to 35℃
|
|
HUMIDITY
|
25% to 85% RH
|
More sizes available
For More EMI Suppression Ferrite Core, Please Go To Our Website Or Contact Us.
