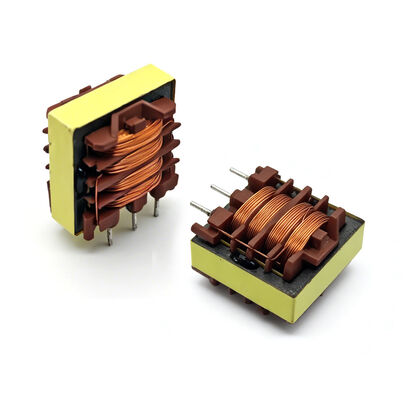

The LEF20 series common mode power line choke is engineered for effective suppression of common-mode interference. Featuring a 2-section winding structure, it delivers high resonance frequency, high pulse strength, and low audible noise. With approximately 2% leakage inductance, it provides symmetric interference suppression. The series complies with EN 60938-2 (VDE 0565-2) and UL 1283 standards, is RoHS-compliant, and suitable for wave soldering processes.
| Part Number | Inductance (mH) +50%/-30% @10kHz, 0.1V | DCR (mΩ) Max | Leakage Inductance (μH) typ. @10kHz, 0.1V | Current Range (A) |
|---|---|---|---|---|
| LEF20-332Y-1.8A | 3.3 | 200 | 65 | 1.8 |
| LEF20-682Y-1.3A | 6.8 | 370 | 140 | 1.3 |
| LEF20-103Y-1.0A | 10 | 630 | 200 | 1.0 |
| LEF20-153Y-0.8A | 15 | 950 | 300 | 0.8 |
| LEF20-273Y-0.65A | 27 | 1600 | 550 | 0.65 |
| LEF20-393Y-0.55A | 39 | 2200 | 800 | 0.55 |
| LEF20-473Y-0.45A | 47 | 2800 | 950 | 0.45 |
| LEF20-683Y-0.35A | 68 | 4400 | 1300 | 0.35 |
| LEF20-104Y-0.3A | 100 | 6600 | 2000 | 0.30 |
